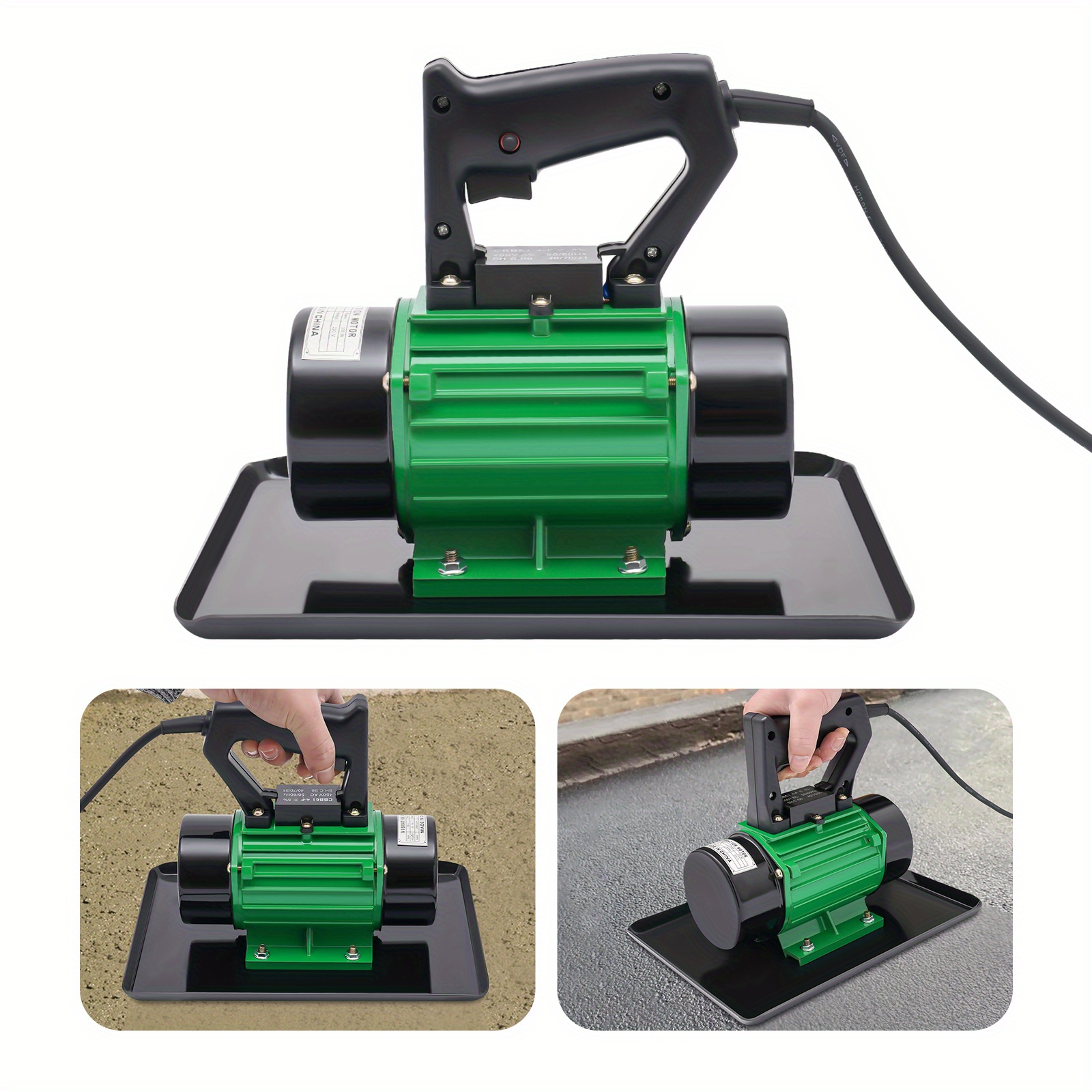

Betonrüttler, handgehaltener Tischrüttler, Zementglätter für Beton- und Zementnivellierung, Straßen-, Haus-, Brückenbau usw.

Description

Are you still struggling to apply cement manually? Our cement smoother is equipped with a highly efficient all-copper motor that delivers a surge of power to ensure that the smoothing process is a breeze. It has an ergonomically designed handle, which maintains stable performance even after long hours of intense use. Choosing it is like having a skilled construction artist create a mirror-like concrete surface.

How to Install

1.Remove the front cover before installation.

2.Remove three screws and open the front cover.

3.Put in the saw blade with a spacer between each.

4.Put in the set screws and nuts.

5.Tighten the cover screws with a wrench.

6.Move the front cover back to its original position and tighten the screws.

Application

It is suitable for most concrete and cement leveling works, such as road construction, house construction, bridge construction, dam construction, harbor construction, and smoothing work on concrete countertops and walls.

Specifications

Model: ZB-5

Style: Modern

Color: Green, Black

Material: Plastic, Cast Iron

Surface Treatment: Die Casting

Plug Standard: EU Standard

Type: Single-Phase

Insulation Class: E

Motor Type: All-copper Motor

Voltage: 220V, 50HZ

Power: 370W

Assembly Required: No

Speed: 3500 RPM

Current: 1.8 A

Vibration Force: 100 kg/220.46 lbs

Cable length: 1.5m/4.92 ft

Operation Noise: 80dB

Start Capacitor Model: CBB61

Start Capacitor Capacity: 4uF ± 5%

Start Capacitor Voltage: 450V, 50/60 HZ

Gross Weight: 3.5kg/7.7 lbs

Chassis Size: 29*21*0.22cm/11.4*8.26*0.08 in

Package Size: 32*24*24cm/12.5*9*9 in

Package Included

1* Cement Smoother

1* Manual
