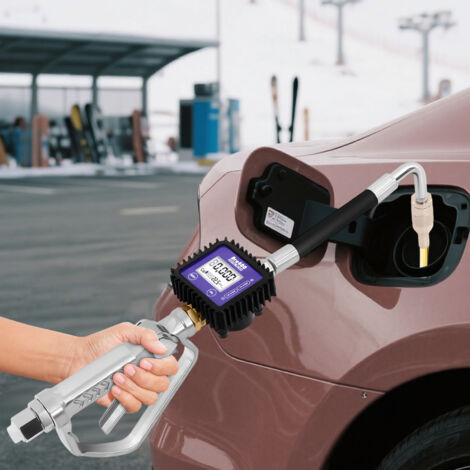

Digitale Ölpistole mit Durchflussmesser Mengenölzapfpistole für Tankstelle

Anwendung

Dieses Produkt ist für LKW, Busse, Öltanker, Schiffe, Baustellenmaschinen, etc. geeignet. Es gilt für Füllflüssigkeiten wie Getriebeöl, Motoröl und Frostschutzmittel.

Spezifikation

Material: Aluminiumlegierung, Gummi

Farbe: Silber, Schwarz

Stil: Modern

Ölrohr Typ: Schlauch

Anwendbares Medium: Motoröl

Anzeigeeinheit: L, GAL, PTS, QTS

Bildschirmtyp: Fünfstelliges LCD

Arbeitsdruck: 45BAR

Messgenauigkeit: ± 0,3%

Anzahl der Batterien: 2 (im Lieferumfang enthalten)

Fehlerkoeffizient Einstellbereich: 0.100---9.999

Arbeitstemperatur: -10°C~＋50°C/14°~122°C

Auslass O.D.: 15mm/0.59in

Inlet ID: 13mm/0.51in

Instrumentengröße(L*W): 9*8cm/3.54*3.15in

Produktgröße (L*W): 58*15cm/22.83*5.91in

Paket Größe: 62*21*12cm/24.41*8.27*4.72in

Bruttogewicht: 2,02kg/4,45lbs

Nettogewicht: 2kg/4.41lbs

Paket enthalten

1* Ölflüssigkeitsspender

1* Englisches Handbuch

Application

This product is suitable for trucks, buses, oil tankers, ships, construction site machinery, etc. It applies to filling fluids such as gear oil, engine oil, and antifreeze.

Specification

Material: Aluminum Alloy, Rubber

Color: Silver, Black

Style: Modern

Oil Pipe Type: Hose

Applicable Medium: Engine Oil

Display Unit: L, GAL, PTS, QTS

Screen Type: Five-digit LCD

Work Pressure: 45BAR

Measurement Accuracy: ± 0.3%

Number of Batteries: 2 (Included)

Error Coefficient Setting Range: 0.100---9.999

Working Temperature: -10°C~＋50°C/14℉~122℉

Outlet O.D: 15mm/ 0.59in

Inlet I.D: 13mm/0.51in

Instrument Size(L*W): 9*8cm/3.54*3.15in

Product Size(L*W): 58*15cm/22.83*5.91in

Package Size: 62*21*12cm/24.41*8.27*4.72in

Gross Weight: 2.02kg/4.45lbs

Net Weight: 2kg/4.41lbs

Package Included

1* Oil Fluid Dispenser

1* English Manual

Notes

• Please check all connections for leaks and ensure that the technical data installed matches the technical data of the lubricating oil flow meter.
• After the installation of the instrument, please ensure that there is no air pressure shock or particle damage to the instrument.
• Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
• Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
