65W Glasschleifmaschine Glasschleifer Schleifmaschine Diamond Grinder Tools Set

220V Mini Portable Stained Grinder Diamond Glass Art Grinding Tools Blue with MCBL58 Grinding Wheel

SKU:OT-WMTCXX-3948-DE

Package Included:

1 x Glass Grinder

1 x 5/8” diamond grinder bit(MCBL58Grinding Wheel)

Application:

1. Suitable for grinding glass,ceramics and other hard and brittle material.

2. Two models of Grinding wheel for this machine, respectively, are mcbl1,mcbl58, we will send one free MCBL58Grinding Wheel

3. Inside the rotary shaft (the fine shaft of the grinding head) diameter: 0.7cm, Grinding wheel inner diameter: 0.79cm

Features:

1. Mini size and easy to carry

2. Stable and reliable performance

3. Automatic water available for some sizes(5/8” 1”)

4. New design switch avoid electronic conduction

5. Glass, ceramics, such as grinding hard brittle materials

6. Grinding variety of geometric shapes: plane, curve, rounded corners, slope, etc.

Specifications:

Voltage: 220V, 0.1A

Power: 65W

Rotating speed: 4200r/min

Working table size: 165x165 mm

Machine size: 195x195x160 mm

Rotating shaft in grinding table (fine shaft with grinding head): diameter 0.7cm

Grinding wheel inner diameter: 0.79cm

Machine weight: 2kg

Color: Blue

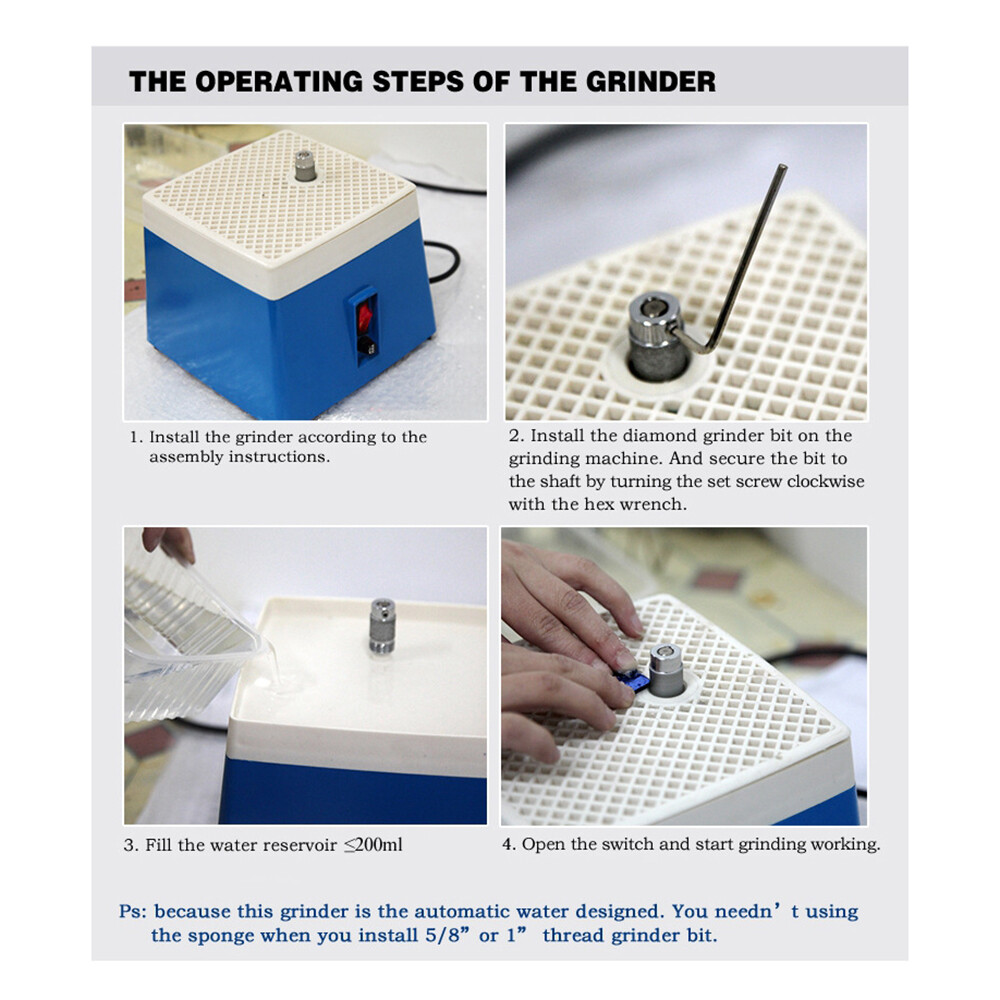

Grinding wheel installation:

1. Before installation of grinding wheel, topped with lubricant, engine shaft grinding wheels need to apply a layer of lubricant inside.

2. The grinding wheel mounted to the engine shaft, the fixed screw position higher than the engine shaft. The position of the grinding wheel on the axle must be at least 1/8" diamond part above the operating table.

3. Fixed grinding wheel on the shaft with hexagonal wrench clock wisely.

Installation Note: Maintain stability of the grinding wheel installed in the engine shaft of the plane.

Operation Note:

1. Can not grinding without water. Ensure the grinding wheel is wet

2. When using the grinding wheel, with small strength , don't use too much strength.Too much strength will reduce grinding machine and the service life of the grinding wheel.

3. After using, clean the water reservoir. Remove the reservoir, clean up the rest of the residue after grinding.

4. In order to prolong the service life of grinding machine, cleaning and add lubricant to the engine shaft, 25 hours after each use, remove all the grinding wheel and the fixed screw.

5. If the grinding wheel not be used for a week or longer,it need to grind down on stage to prevent the direct axis stick on.

This will help you to develop check engine shaft and wheel maintains a habit.

6. Don't grinding metal. If grinding metal, it will damage the grinding wheel and result in can not grinding glass any more.
