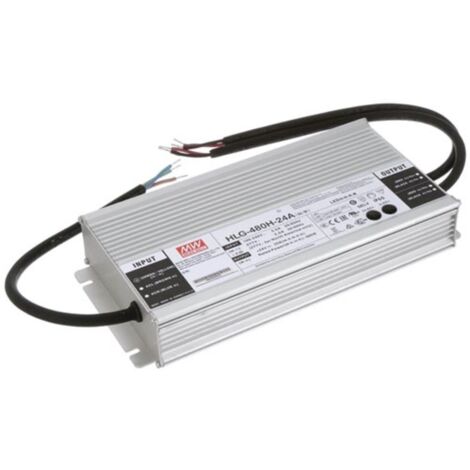

Mean Well SCHALTNETZTEIL - EINZELAUSGANG - 480W - 24V

SCHALTNETZTEIL - EINZELAUSGANG - 480W - 24V Ausgang: ** Gleichspannung (DC): 24 V ** Konstantstrom: 12 V bis 24 V ** Nennstrom: 20 A ** Nennleistung: 480 W ** ripple & noise (max.): 200m VP-p ** Spannungsbereich (Ausgang): 20.4 - 25.2 V ** Strombereich: 10 - 20 A ** Spannungstoleranz: ± 1.0 % ** Netzregelung: ± 0.5 % ** Lastregelung: ± 0.5 % ** Anlauf-, Anstiegszeit: 500ms, 80ms 115VAC/230VAC * Eingang: ** Spannungsbereich (Eingang): 90-305 VAC 127-431 VDC ** Frequenzbereich: 47-63 Hz ** Leistungsfaktor: PF >/= 0.98/115 VAC PF >/= 0.97/230 VAC PF >/= 0.95/227 VAC at full load ** total harmonic destortion: THD < 20% ** efficiency (230 VAC): 94% ** efficiency (277 VAC): 94.5% ** ac current: 5 A / 115 VAC ** Einschaltstrom: cold start 75 A / 230 VAC ** Leckstrom: < 0.75 mA / 277 VAC * protection: ** over current: 95-108% ** short circuit: constant current limiting, recovers automatically after fault condition is removed ** over voltage: 27-33 V ** over temperature: shut down output voltage, re-power on to recovery * environment: ** working temperature: -40 °C to 90°c ** max. case temperature: 90°C ** working humidity: 20 - 95% RH non-condensing ** temperature coefficient: ± 0.02 % / °C (0 °C to 60 °C) ** vibration: 10 to 500 Hz, 5 G 12 min. / 1 cycle, period for 72 min. each along X, Y, Z axes * safety: ** safety standards: UL8750(type"HL"), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;GB19510.14,GB19510.1;IP65 or IP67 EAC TP TC 004 ;KC61347 1, KC61347 2 13, J61347-1(H29), J61347-2-13 approved ** withstand voltage: /P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC ** isolation resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH ** EMC emission: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load 50%) ; BS EN/EN61000-3-3;GB17743, GB17625.1?,EAC TP TC 020;KC KN15,KN61547( ),J55015(H29)(for Blank/A-type)except for AB,Dx,D2-typ ** EMC immunity: Compliance toBS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV,Line-Line 2KV), ;KC KN15,KN61547( ),J55015(H29)(for Blank/A-type) * others: ** mtbf: 345.5K hrs min. Telcordia SR-332(Bellcore) ; 95.3K hrs min. MIL-HDBK-217F (25)°C ** dimension: 262*125*43.8mm (L*W*H) ** packing: 2.8Kg;4pcs/12.2Kg/0.55CUFT
