Sihao 30W Faserlaser Graviermaschine Laser Markierungsgerät 220V Hochpräzise
Produktinformationen
Beschreibung

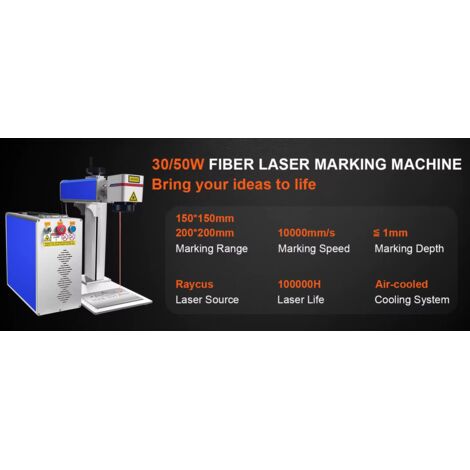

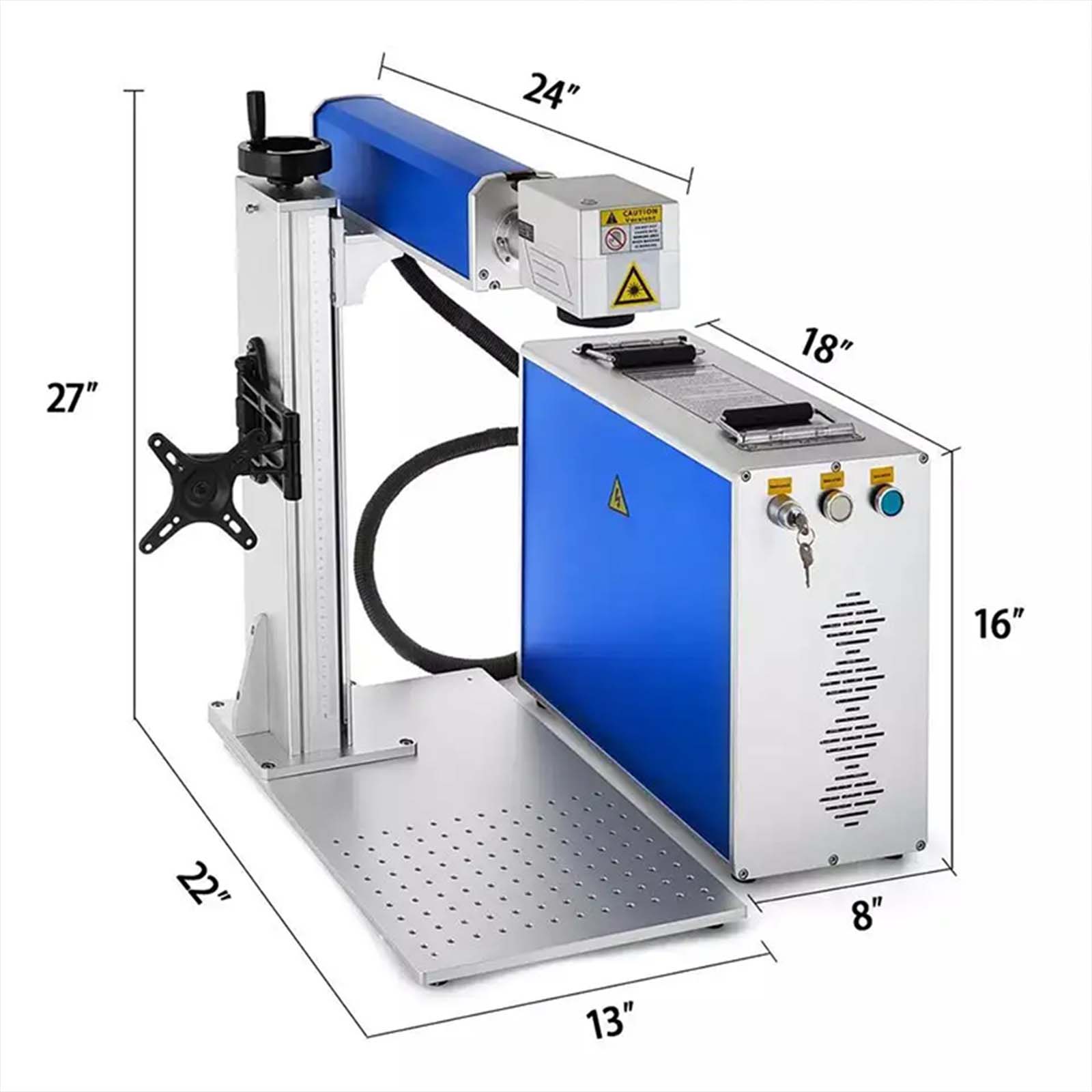

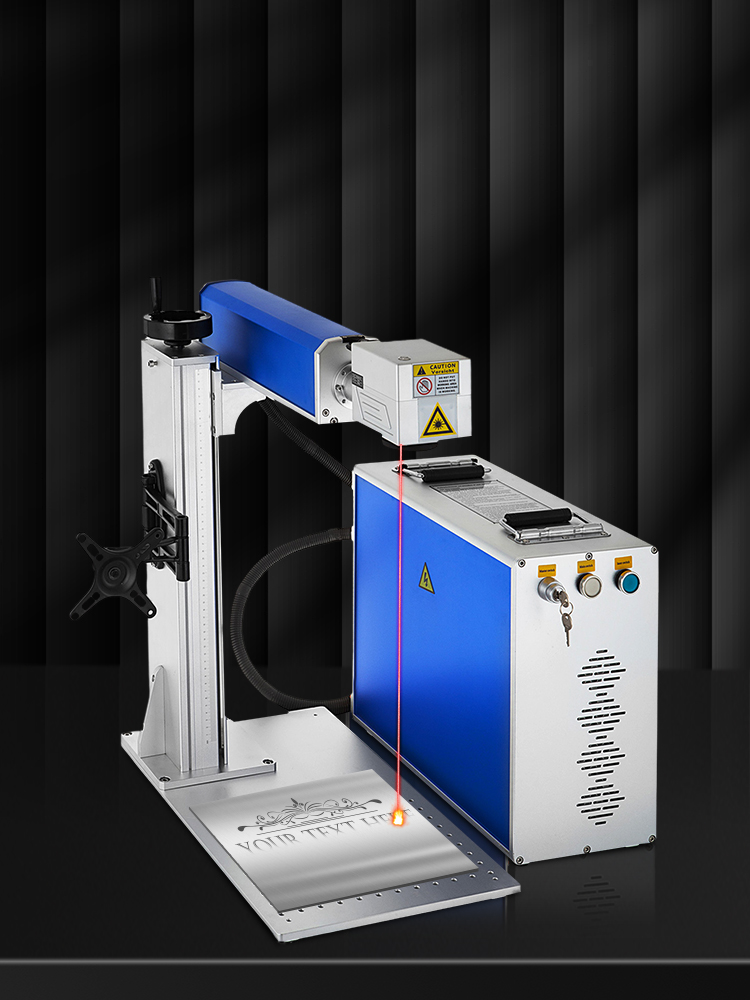

30W/50W Portable Fiber Laser Marking Machine
A portable fiber laser marking machine can be marked on metal and some non-metal materials, marking out the text clearly and permanently, and will not fade off. Using air-cooled cooling, the whole machine is small, the output beam quality is good, high reliability. Raycus brand laser has a long service life, maintenance-free, 100,000 hours without supplies, no power coupling loss, saving operating costs. Adopt contactless processing, will not cause pollution to the environment.
-
Precision marking
-
Portable and energy-saving
-
Powerful Software
-
Wildly Application

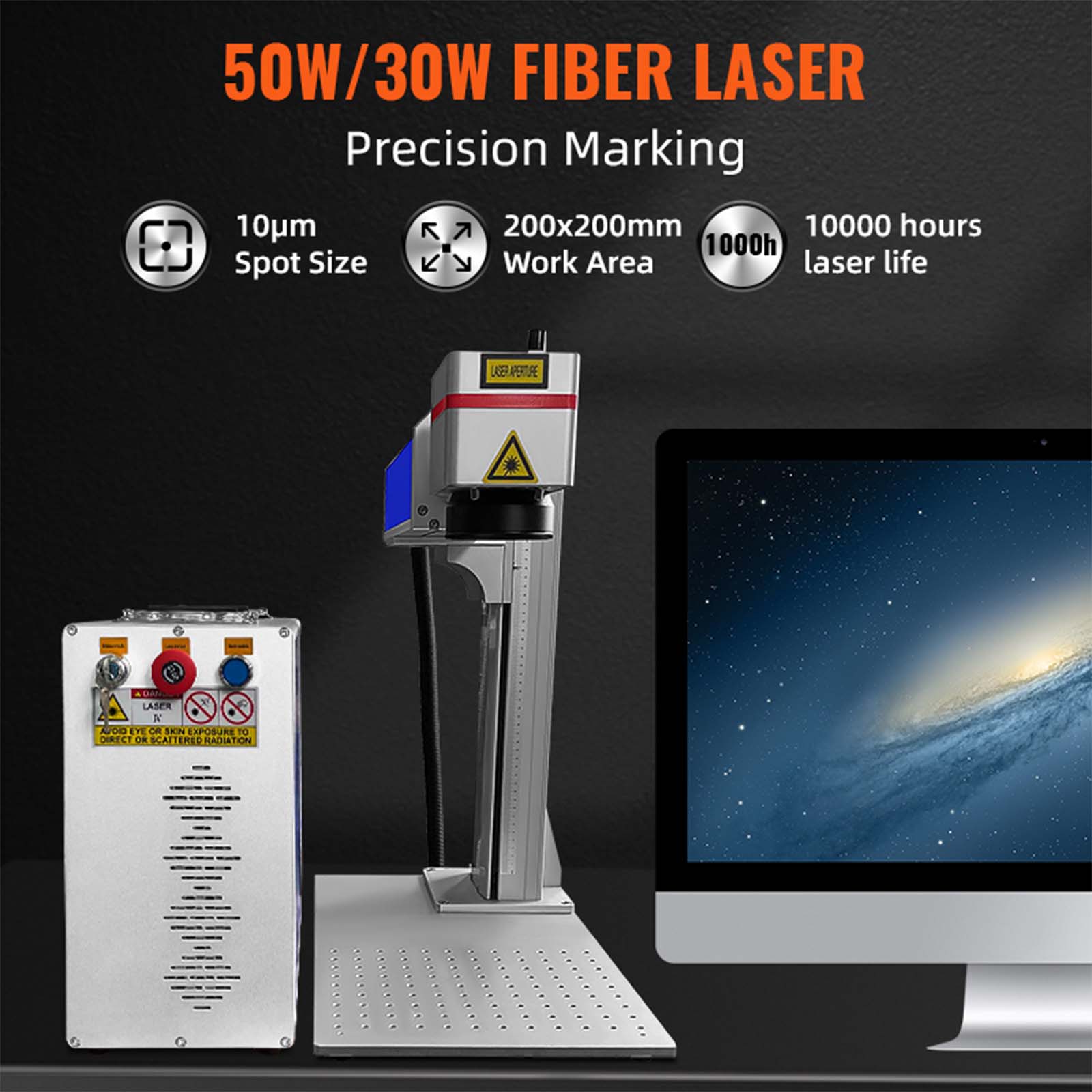

Key FeaturesPrecision Marking Fiber laser life can reach 100,000 hours. High beam quality, base mode (TEM00) output, focused spot diameter less than 20um. The divergence angle is 1/4 of the semiconductor pump laser, a single line is finer.

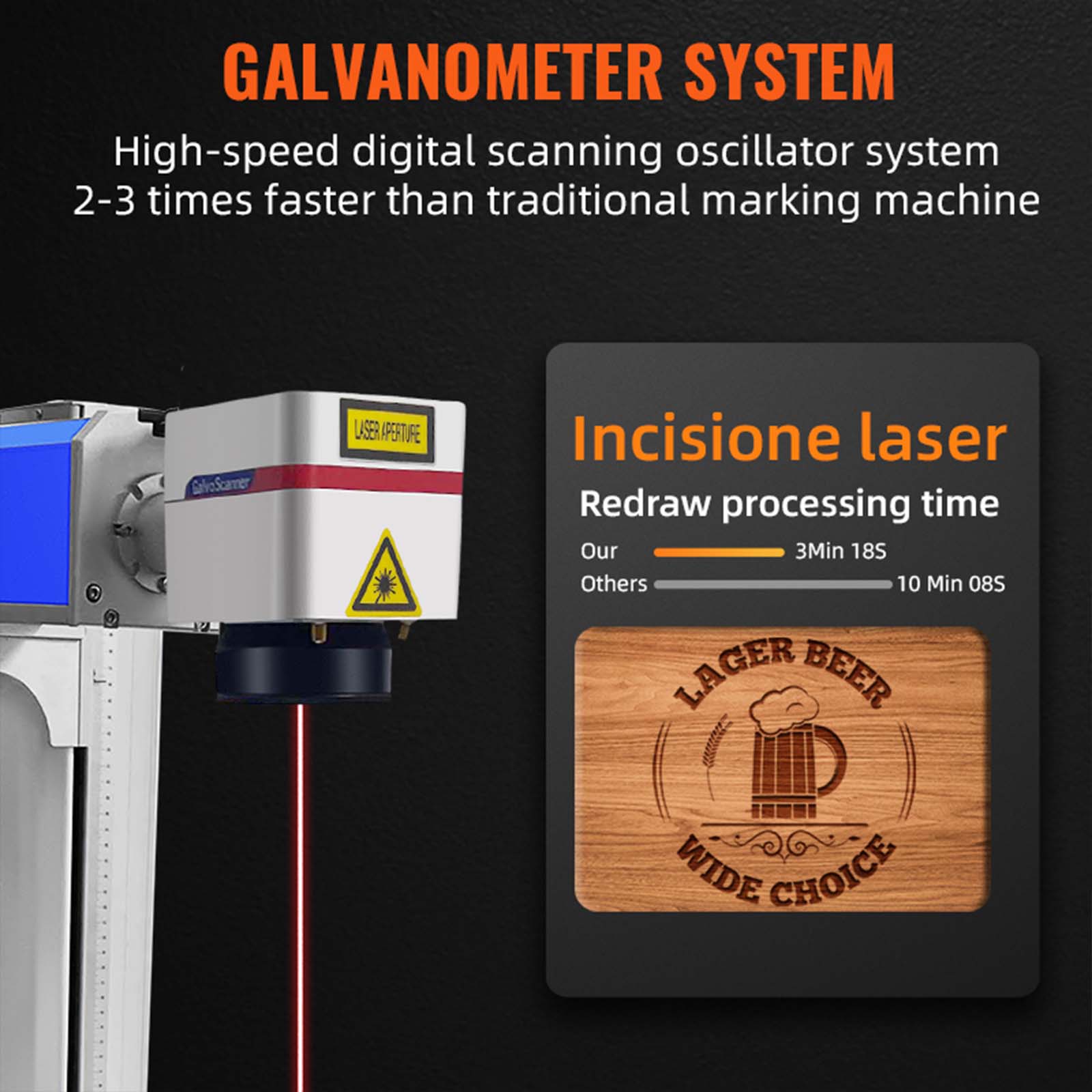

Galvanometer system High-speed digital scanning oscillator system, fast processing speed, 2-3 times faster than traditional marking machine, optical scanning oscillator, high laser repetition frequency, high speed without distortion.

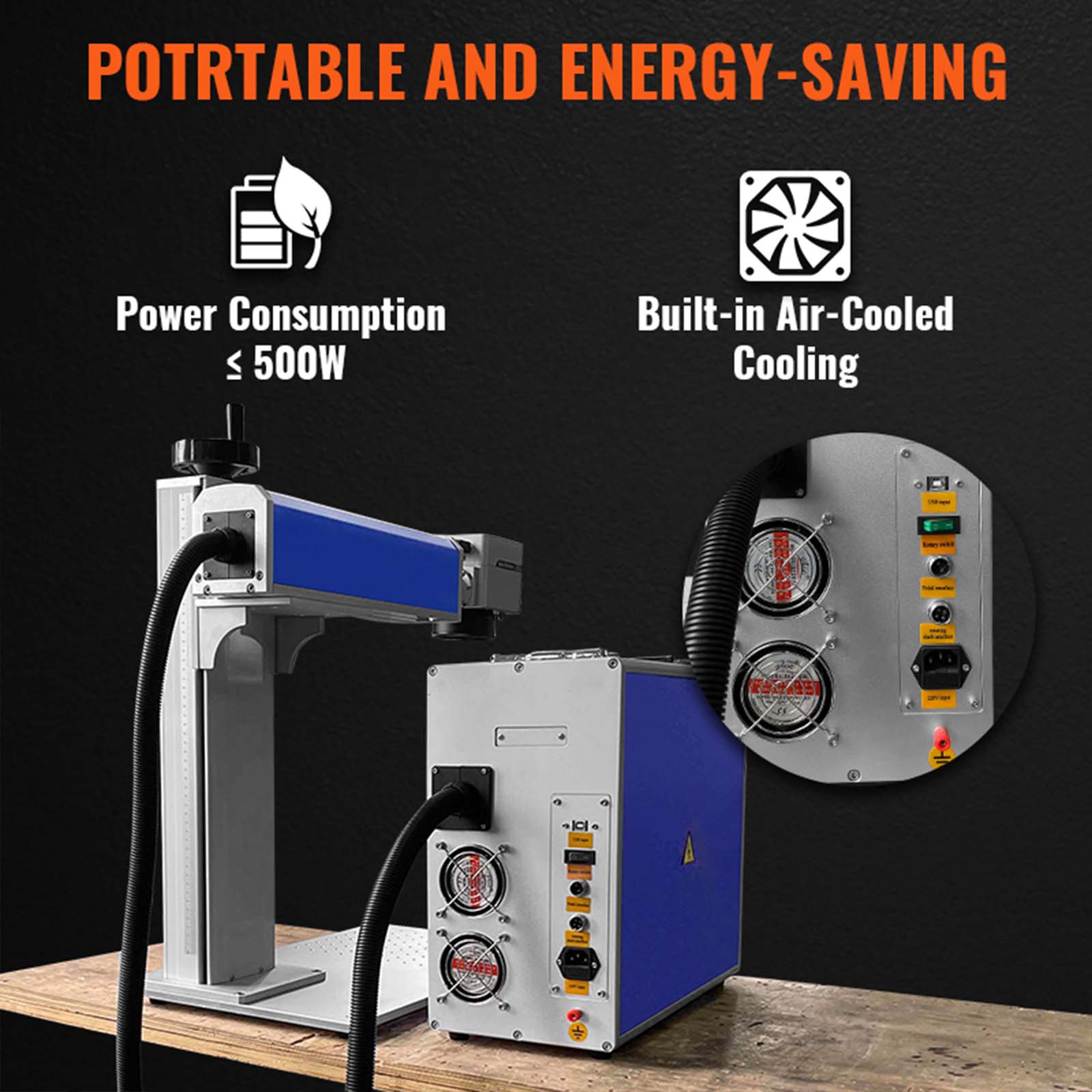

Portable and energy-saving Small size, low power consumption, the whole machine consumes less than 500W; built-in air-cooled cooling method, abandoning the bulky water-cooled unit, covering a smaller area and easier installation.

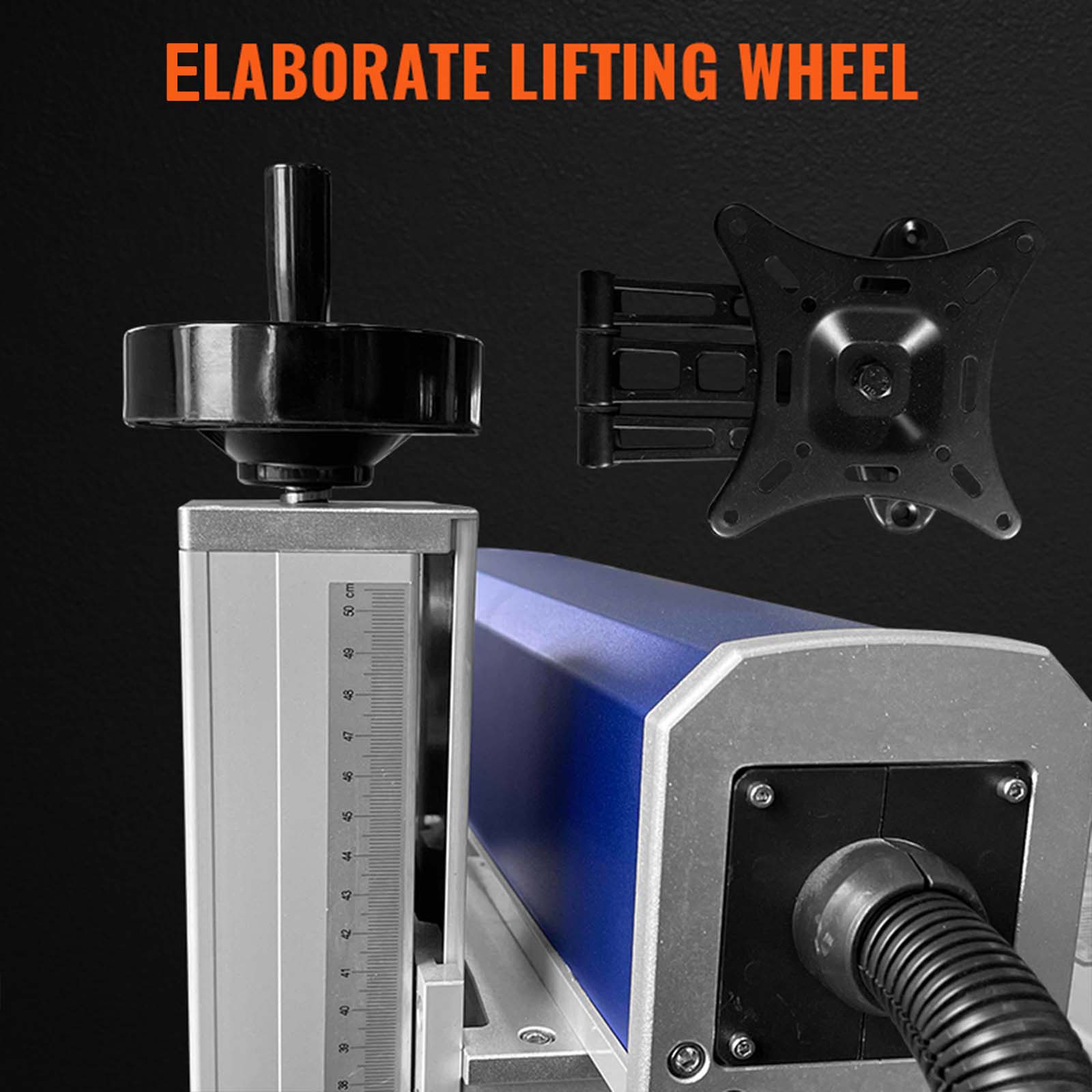

Elaborate lifting wheel Equipped with a hidden lifting rod for high positioning accuracy. The wheel can be used to adjust the height of the galvanometric system, and the small handle on the wheel facilitates adjustment.
Powerful software Compatible with Coreldraw, AutoCAD, and other software files; support PLT, PCX, DXF, BMP, etc., can directly use SHX, TTF font; support automatic coding, printing serial numbers, batch numbers, dates, bar codes, and two-dimensional codes, automatic jump number, etc., USB interface output control.

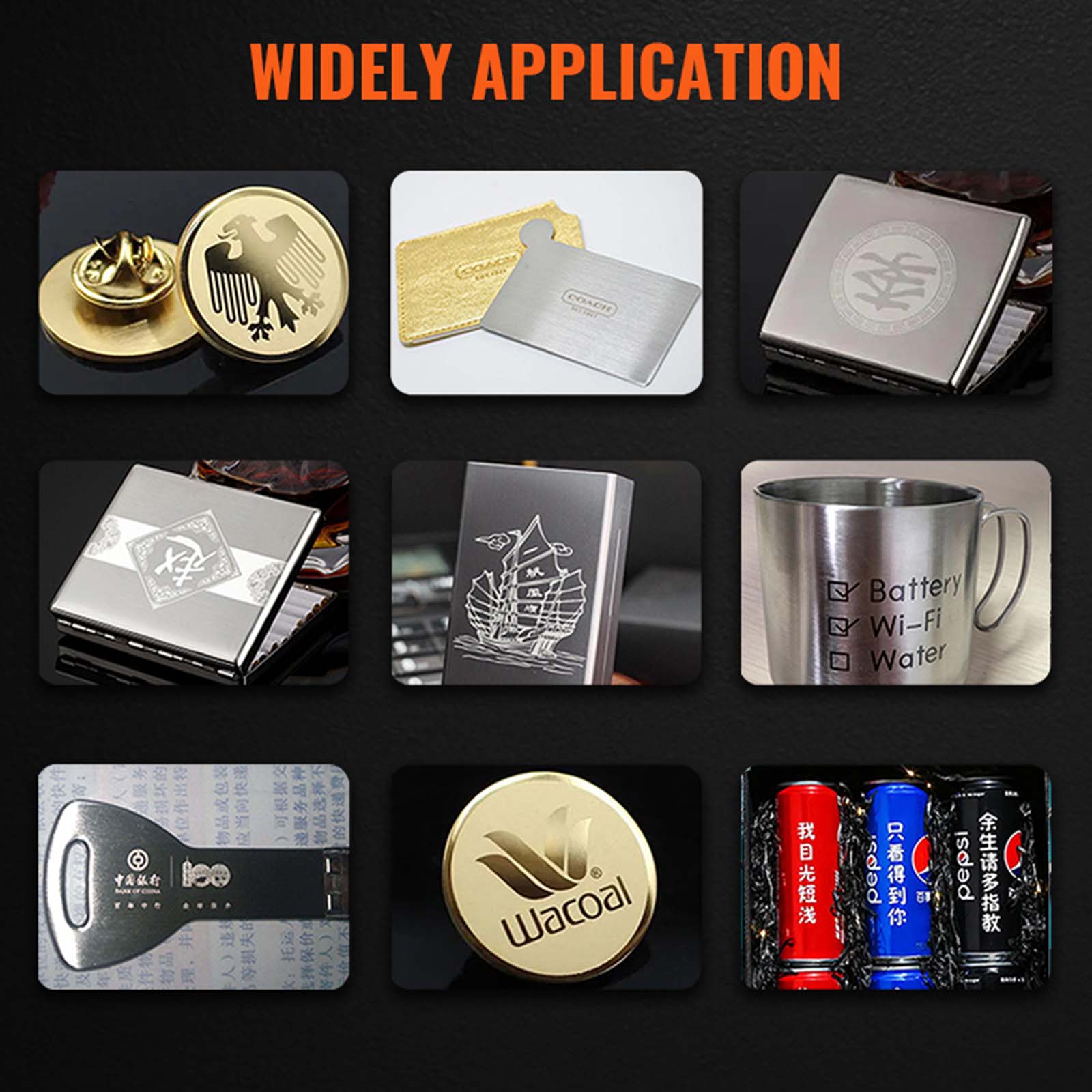

Widely Application Equipped with an optical isolator, effectively shielding the reflected light, it can completely operate on gold, silver, copper, aluminum, silicon, and other high-bright surfaces and highly reflective materials without deviating from the positive center of the field mirror, which greatly broadens the application field. And for different metals, through frequency and energy adjustment, it can act out a certain color.
Specifications
-
Product Name: Fiber laser marking machine
-
Power Supply: 110V(US/CA/MX)/220V(EU/RU/UK/AU)
-
Beam Quality: <1.6
-
Output Power:30W
-
Maximum Marking Line Speed: 10000mm / s
-
Laser Source Brand: Raycus
-
Laser Wavelength: 1064nm
-
Marking Range:150mm*150mm
-
Laser Repetition Frequency: 40KHz-60KHz/50KHz-100KHz
-
Maximum Single Pulse Energy: 0.75(mJ)/1(mJ)
-
Power Adjustment Range: 10%-100%
-
Minimum Character: 0.15mm
-
Marking Depth: 0.01-1.0mm
-
Repeat Accuracy: ±0.0001mm
-
Minimum Line Width: 0.01mm
-
Power Consumption of The Machine: ≤500w
-
Cooling System: air-cooled
-
Control Interface: USB
-
Continuous Working Time: Can work continuously

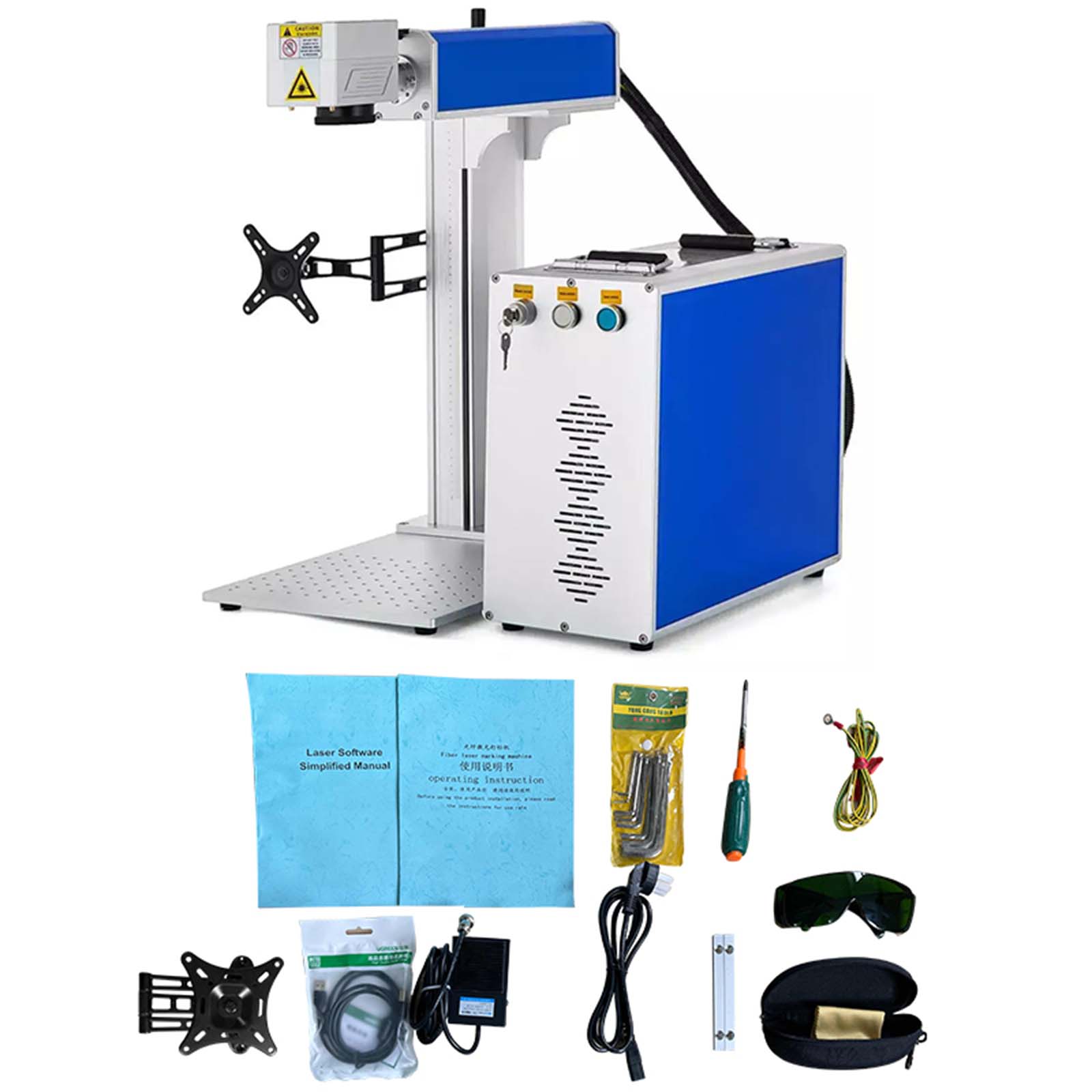

Package Content
-
1 x Laser Marking Machine
-
1 x Goggles
-
1 x Foot Switch
-
1 x Display Bracket
-
1 x Repair Tool
-
1 x Instructions
-
1 x U Disk
-
1 x Positioning Tool
-
1 x Power Input Line
-
1 x Data Transmission Line
-
1 x Connection
-
1 x Marking Samples
-
Eigenschaften
- MarkeANDERE
- Ideal geeignet fürMetall
- MaterialMetall
- Gewicht42.7 kg
- Leistung30 W
- Elektrische Spannung220 V
- ManoMano Art.-NrME99358590
- MMID324069349913
- Herstellerreferenz8SCLOGO-GQDBJFTS30W150*150V2
